• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333585

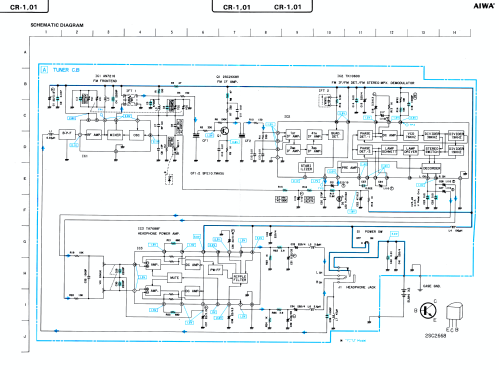

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• 2SC2668 AN7216 TK10600 TA7688 TLR102 SD117 SFE-10.7MA SFE-10.7MA

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / AAA: 2 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: FM Stereo Receiver CR-1, 01 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Aiwa CR-1, 01 is a small portable battery operated stereo FM receiver for use with headphones.

• Mentioned in

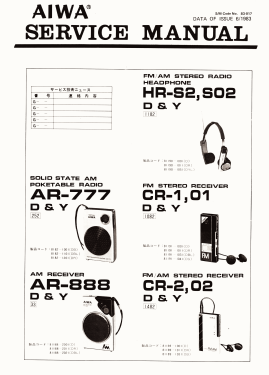

• -- Original-techn. papers.

• Author
• Model page created by Adrian Riesen. See "Data change" for further contributors.
