• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1992 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354417

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• PLL, Phase-locked loop

• Wave bands
• FM Broadcast Band Only

• Details
• Radio with other functions

• Power type and voltage
• Batteries / addl. power jack / PB-S5: 1 x 2 Volt

• Loudspeaker
• - only for Earphone!

• Power out
• 0.02 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

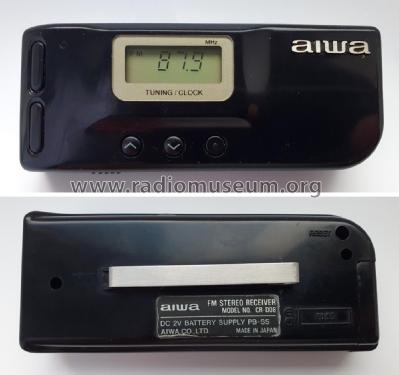

• Model: FM Stereo Receiver CR-D08 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 92.8 x 37.2 x 25.5 mm / 3.7 x 1.5 x 1 inch

• Notes

• Stereo mini-FM synthesizer-tuner with memory for 10 stations. DSL-AIWA  dynamic super linear bass. LCD display. Digital clock. Power Bass headphones. Power supply for fast charging (10 minutes) of an internal sealed lead-acid battery.

• Net weight (2.2 lb = 1 kg)
• 0.063 kg / 0 lb 2.2 oz (0.139 lb)

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
