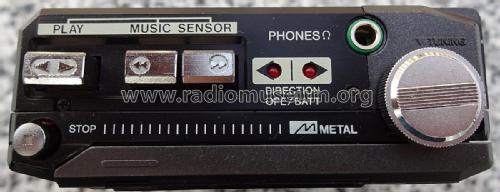

FM/AM Stereo Radio Cassette Recorder HS-J07
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1984
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 333754
- Number of Transistors
- 27
- Semiconductors
- TK10640 2SK211 2SA1162 2SC2712 2SC2714 2SC3326 2SD1328 2SK209 1SS181 SD117 1S1555 TA7358 TA7739 TA7757 TK10283 TK10360 TK10460 DA90A-R GL-1PR-1
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / AA: 2 x 1,5 V / 3 DC Volt
- Loudspeaker
- - only for Earphone!
- Power out
- 0.02 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/AM Stereo Radio Cassette Recorder HS-J07 - Aiwa Co. Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 85 x 120 x 30 mm / 3.3 x 4.7 x 1.2 inch
- Notes
-
Autoreverse Stereo Cassetten Recorder mit Radio
Metall- und Kunststoffausführung
Kopfhörer-Anschluss
Dolby NR
Umschaltung Metal-Normal

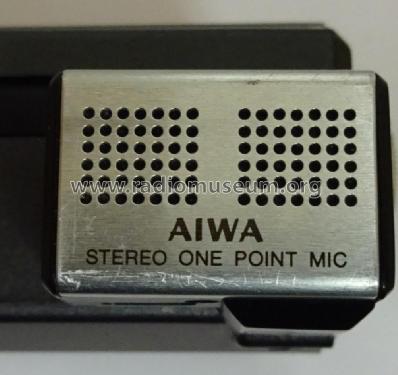

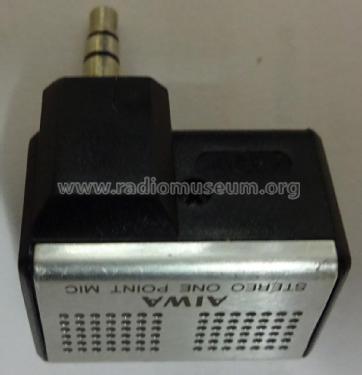

Electret Kondensator Mikrofon als Zusatz
Umschaltung Reverse Mode
Super Permalloy HeadTransistoren mehrfach vorhanden
Umschaltung Mono-Stereo
FM: 88-108 MHz
AM: 530-1600 kHz
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Schematic
- Literature/Schematics (2)
- - - Manufacturers Literature
- Author
- Model page created by Gerhard Härtl. See "Data change" for further contributors.
