• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 281045

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 50-60 Hz, 110-120; 220-240 / AAA: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

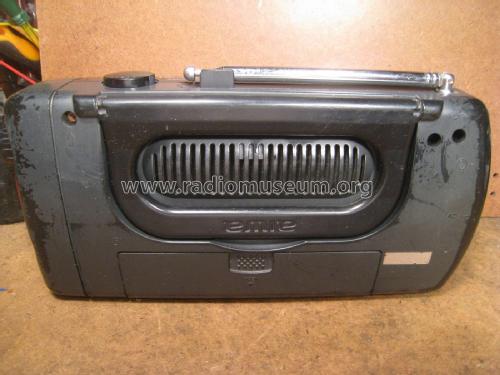

• Model: Radio Receiver FR-C3Z - Aiwa Co. Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 210 x 105 x 50 mm / 8.3 x 4.1 x 2 inch

• Notes

• Antenna estraibile esterna -uscita per cuffia. Controllo tono

  Made in China

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
