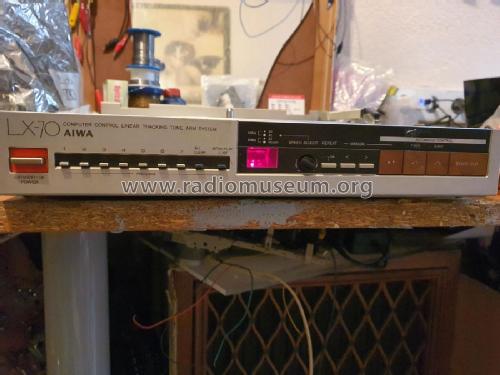

Linear Tracking Programmable Turntable LX-70
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1984
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 343840
AIWA General Catalogue 1984, Page 4.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - Is a Headphone or Earphone
- Material
- Various materials
- from Radiomuseum.org
- Model: Linear Tracking Programmable Turntable LX-70 - Aiwa Co. Ltd.; Tokyo
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 330 x 70 x 330 mm / 13 x 2.8 x 13 inch
- Notes
-
LX-70 Linear Tracking Programmable Turntable.
- Direct drive FG servo motor
- Intro-play
- Auto record size/speed selector
- Auto-repeat
TURNTABLE Motor: 4-phase, 8-pole FG servo DD hall motor Wow & Flutter: 0.03% (WRMS) S/N Ratio: 75 dB (DIN-B) TONEARM Type Integrated low-mass linear-tracking CARTRIDGE Type: Vertical Magnet Replacement stylus: AN-70
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Mentioned in
- - - Manufacturers Literature (AIWA General Catalogue 1984, Page 4.)
- Author
- Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
