Radio Receiver FR-C402

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 270523

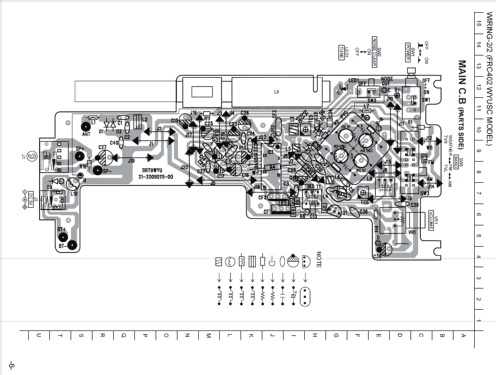

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / 3 x 1,5 / 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Receiver FR-C402 - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 160 x 81 x 40 mm / 6.3 x 3.2 x 1.6 inch
  • Notes

  • Aiwa Portable Mono Radio Model FR-C402.
    Tuning Bands: FM, MW, TV low, TV high, Weather, Tuning Scale: Analogue
    FM Tuning Range: 87.5 to 108 MHz
    MW Tuning Range: 530 to 1710 kHz
    TVlow 2-6 channel
    TVhigh 7-13 channel
    WEATHER 1-7 channel
    AC Adaptor Aiwa AC-D302.


  • Net weight (2.2 lb = 1 kg)
  • 0.250 kg / 0 lb 8.8 oz (0.551 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
