Radio Receiver FR-C 12

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 2000 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 294363

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 3 x 1,5 / 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Receiver FR-C 12 - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 152 x 76 x 34 mm / 6 x 3 x 1.3 inch
  • Notes

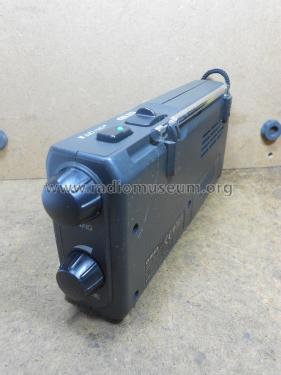

  • AIWA Radio Receiver mod. FR-C12 - controllo volume - antenna telescopica esterna - maniglia di trasporto - selettore AM/FM - tasto accensione on/off - uscita per cuffia.

    Made in China.

  • Net weight (2.2 lb = 1 kg)
  • 0.420 kg / 0 lb 14.8 oz (0.925 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
