Stereo Cassette Deck AD-1250
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1976
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 156049
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org

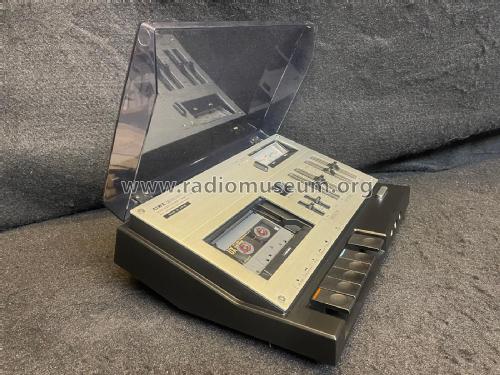

- Model: Stereo Cassette Deck AD-1250 - Aiwa Co. Ltd.; Tokyo
- Dimensions (WHD)
- 388 x 150 x 275 mm / 15.3 x 5.9 x 10.8 inch
- Notes
-
2-Head Design, Dolby B, Belt Drive, Single Capstan Transport.
3-Digit Mechanical Counter, Analog Needle Meters.Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: DC servo
Tape Type: type I, CrO2, FeCr
Noise Reduction: B
Frequency Response: 30 Hz to 16 kHz (FeCr tape)
Signal to Noise Ratio: 60 dB (dolby B)
Wow and Flutter: 0.09%
Input: 50 mV (line), 0.3 mV (mic)
Output: 0.775 V (line)
Semiconductors: 2 x IC, 19 x transistors, 12 x diodes, 3 x LED
- Net weight (2.2 lb = 1 kg)
- 4.650 kg / 10 lb 3.9 oz (10.242 lb)
- Price in first year of sale
- 240.00 $
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
