Stereo-Center TPR-3001 C, H

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201145

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 55
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC) / 117 or 110-120; 220-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 24 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo-Center TPR-3001 C, H - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 480 x 136 x 320 mm / 18.9 x 5.4 x 12.6 inch
  • Notes

  • Kombination eines Hi-Fi-Steuergerätes mit einem Kassettenrecorder. Automatischer Kassetten-Auswurf am Bandende, sowie die wahlweise Möglichkeit, mit dem Kassettenauswurf den Netzschalter betätigen zu lassen. Damit schaltet sich das Gerät nach Bandauswurf ab. Ein Mikrofoneingang mit eigenem Pegelregler ist so geschaltet, daß er zu allen Programmarten wirksam ist. Eignung als Hintergrund-Musikgerät für Lokale oder Geschäftsräume, bei denen fallweise Durchsagen notwendig sind.

    Specifications model TPR-3001 H, C

    Type:  Cassette recorder — FM/AM stereo system

    Solid State Devices: 38 transistors radio, 16 auxiliary transistors, 1 FET, 1 IC, 16 diodes, 8 varistors & 1 thyristor all listed one per type.

    Tuner Section

    Frequency Range:

    FM :  87,5 - 108 MHz
    AM :  525 - 1605 kHz

    Sensitivity :

    FM :  4 µV (IHF Standards)
    AM :  180 µV/m (IHF Standards)

    FM Frequency Response: 50 - 15,000 Hz
    FM Signal-to-Noise Ratio:  60 dB
    FM Distortion:  less than 0,5%

    Antenna:

    FM :  300 Ω  or 75 Ω
    AM :  Bar antenna built-in, antenna terminal

    FM MPX Section

    Separation:  better than 38 dB (1 kHz)
    Distortion :  less than 0,7%

    Tape Recorder Section

    Recording Tracks:  4-track, 2-channel recording system
    Tape Speed:  1-7/8 ips (4,8 cm/s)
    Recording time: 90 min. (w/ C-90 cassette, two ways)
    Wow and Flutter:  0,25% (playback) RMS
    Frequency Response:  30 -12,000 Hz (+3 -6 dB)
    Signal-to-Noise Ratio :  better than 45 dB
    Bias Frequency:  84 kHz
    Erasing System: AC erase
    Servo motor
    Recording Level Indicator:  VU Meter



    Audio Section

    Circuitry:  Complementary SEPP ITL/OTL circuit
    Output: 30 W Music Power, rms 12 W + 12 W

    Frequency Response: 30 - 50,000 Hz (main amp)
    Distortion Factor:  less than 0,3% (at 10 W + 10 W, 1,000 Hz output)

    Gain & Input Impedance:

    Phono Mag :  5 mV / 50 kΩ
    Mic :  1,8 mV / 10 kΩ
    Aux In :  300 mV / 50 kΩ
    DIN (in) :  500 mV / 100 kΩ

    Output Level/Impedance:

    Rec Out :  400 mV /10 kΩ
    DIN (Out) :  30 mV/ 80 kΩ
    SP [Speakers] : 4 - 16 Ω

    Tone Controls

    Bass :  10 dB at 100 Hz
    Treble :  10 dB at 10 kHz
    Equalizer :  Phono RIAA
    Damping Factor :  30  (8 Ω )
    Residual Noise :  less than 1,5 mV (at 8 Ω , load, min. vol)



    Built-In Features

    Automatic Stop/Cassette Ejection System
    Slot-in (Insert-to-play) System
    VU Meter (recording level/output level indicator)
    Recording Indicator Lamp
    FM MPX Indicator Lamp
    Tuning Pointer
    Pause Button
    Function Lever (F.F. STOP, REW)
    Record Button
    Stereo Headphone Jack
    Automatic FM Monaural/Stereo Switching Circuit
    4-channe! Decord Connection Terminal
    REC/PB DIN jack
    Sleep Timer Device
    Mixing Record Circuit
    AC Outlet
    Tape Check Window
    REC OUT Jack

    Power Source:

    TPR-3001C: AC 117 V, 50/60 Hz
    TPR-3001H: AC 110 - 120 V, 220 - 240 V, switchable
    Power Consumption:  60 W with max. output

    Accessories

    Cassette tape x1
    Indoor FM antenna x1
    Fuse x1
    Connection cord x2

  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Literature/Schematics (1)

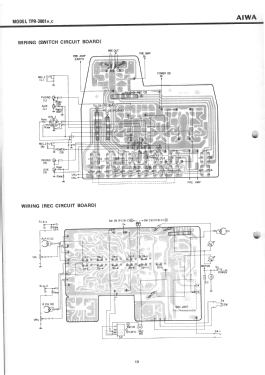

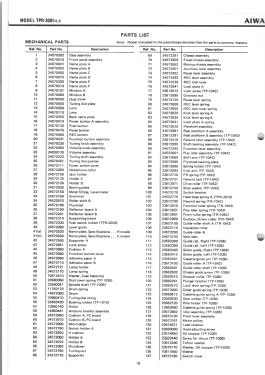

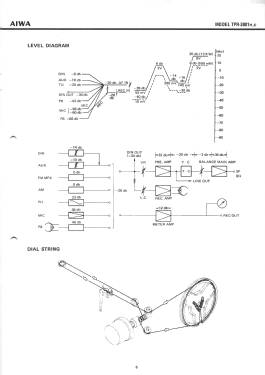

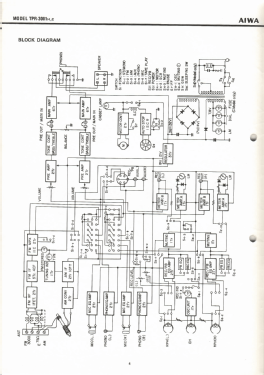

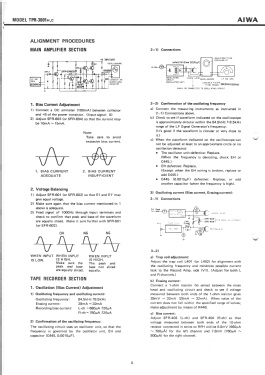

  • - - Manufacturers Literature (Original service manual)
  • Literature/Schematics (2)
  • -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
  • Author
  • Model page created by Museum Roggenhofer. See "Data change" for further contributors.
