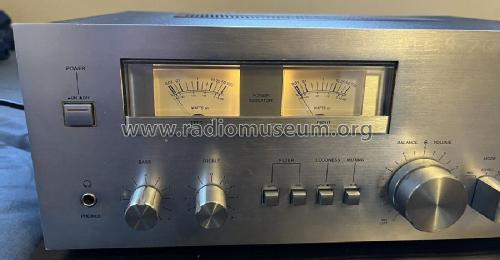

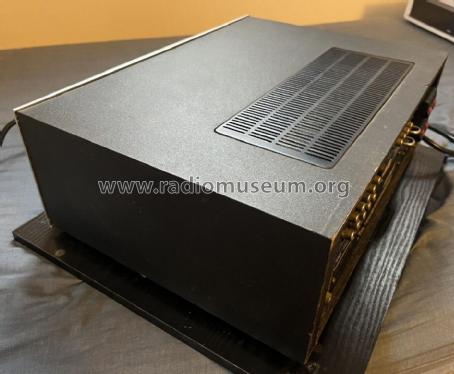

Stereo Integrated Amplifier AA-8300K

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1979 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 353681

 Technical Specifications

  • Number of Transistors
  • 30
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 50-60 Hz, 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 90 W (max.)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Stereo Integrated Amplifier AA-8300K - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 150 x 330 mm / 16.5 x 5.9 x 13 inch
  • Notes

  • Stereo Integrated Amplifier Model Aiwa AA-8300K

    Power output: 45 W per channel into 8 Ω (stereo)
    Frequency response: 10 Hz to 50 kHz
    Total harmonic distortion: 0.1%
    Damping factor: 45
    Input sensitivity: 2.5 mV (MM), 150 mV (DIN), 150 mV (line)
    Signal to noise ratio: 80 dB (MM), 90 dB (line)
    Output: 280 mV (line), 100 mV (DIN)
    Speaker load impedance: 4 Ω to 16 Ω

    Semiconductors: 2 x IC, 30 x transistors, 21 x diodes

    Made in Taiwan.

  • Net weight (2.2 lb = 1 kg)
  • 9.5 kg / 20 lb 14.8 oz (20.925 lb)
  • Price in first year of sale
  • 400.00 DM
  • Mentioned in
  • HiFi Jahrbuch Verlag G. Braun, Karlsruhe (ohne Jahresangabe)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
