• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 293961

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage and/or dry batteries / 2 x 1,5 AA Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

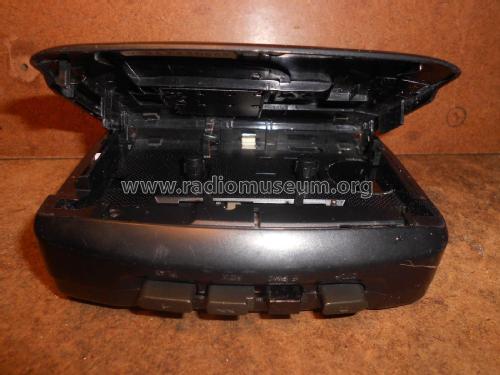

• Model: Stereo Radio Cassette Player Super Bass HS-TA223 - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 85 x 120 x 30 mm / 3.3 x 4.7 x 1.2 inch

• Notes

• AIWA Stereo Radio Cassette Player Super Bass mod. HS-TA223: volume control, play/stop/ff.ww:/rew. button,  separate bas and treble control, Super Bass norm/max control,  tape/radio/off switch, normal Metal/Crome Cr02 switch, FM stereo/FM mono/AM switch, led ope/batt.

  Made in Singapore.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
