Stereo System CU-DZ92M

Aiwa Co. Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 253626

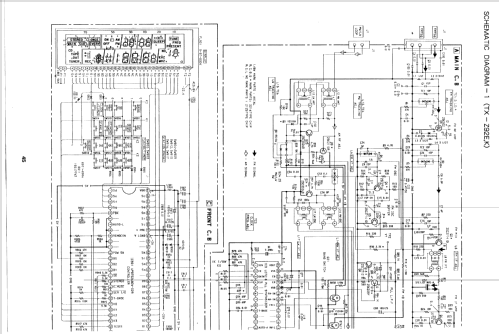

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 100 W (undistorted)
  • from Radiomuseum.org
  • Model: Stereo System CU-DZ92M - Aiwa Co. Ltd.; Tokyo
  • Notes

  • Kompakte HiFi Stereo Anlage, bestehend aus folgenden Einzelbausteinen:

    Verstärker MX-Z92M

    Cassette FX-WZ92

    Tuner TX-Z92

    Graphic-Equalizer GE-Z92

    Remote RC-TZ92ML

     2 Speaker SX-Z92

    Alle Geräte werden mit Betriebsspannungen aus dem Verstärker versorgt.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
