Synthesized Receiver WR-D1000
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1990 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 219050

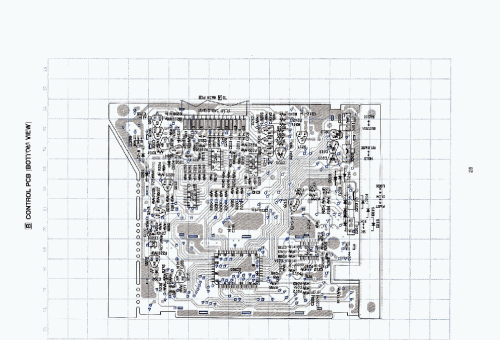

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 55845/450/10700 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 4 × 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Synthesized Receiver WR-D1000 - Aiwa Co. Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 198 x 124 x 35 mm / 7.8 x 4.9 x 1.4 inch
- Notes
- SW: 13× 11-120 m. 20 station Preset Memory. Back up battery: 2 × 1,5 V.
- Net weight (2.2 lb = 1 kg)
- 0.725 kg / 1 lb 9.6 oz (1.597 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
