• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1966 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 200145

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage

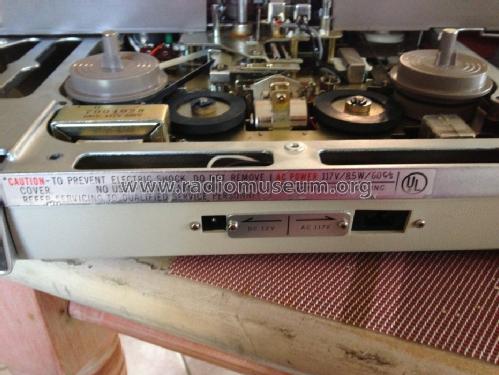

• Line / Storage batteries (perhaps also batteries) / 8 x 1,5 / 12 / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

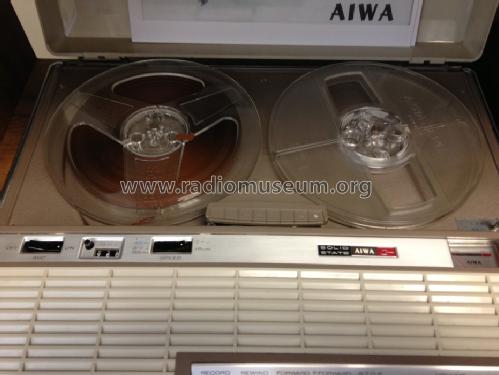

• Model: TP719 - Aiwa Co. Ltd.; Tokyo

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 90 x 330 mm / 16.1 x 3.5 x 13 inch

• Notes
• Zweispurgerät, type TP719 = AC nur 117V
  type TP719G = AC nur 240V
  type TP719H = AC nur 110/220V

• Net weight (2.2 lb = 1 kg)
• 7.8 kg / 17 lb 2.9 oz (17.181 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
