• Country
• Japan

• Manufacturer / Brand
• Aiwa Co. Ltd.; Tokyo

• Year
• 1960 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 110358

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2SB32 2SB33 2SB33 2SB33

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Dry Batteries / 1,5 & 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

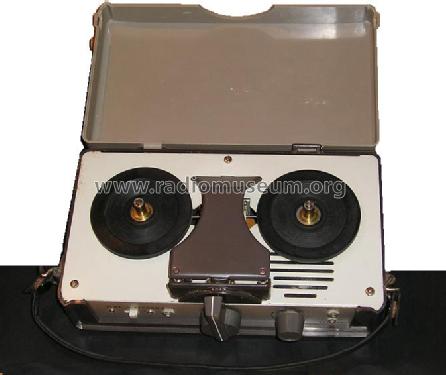

• Model: TP-32 A - Aiwa Co. Ltd.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 234 x 165 x 68 mm / 9.2 x 6.5 x 2.7 inch

• Notes
• Dual Track 3" reel to reel tape recorder, phone, remote and mic. jack.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
