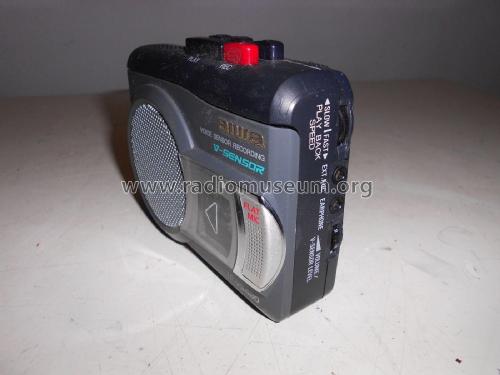

Voice Sensor Recording TP-VS480
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 2000 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 299332
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Dry Batteries / 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Voice Sensor Recording TP-VS480 - Aiwa Co. Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 110 x 85 x 30 mm / 4.3 x 3.3 x 1.2 inch
- Notes
-
V-Sensor - Flat Mic - tasti play/pause/stop/ff.ww./rew/rec - commutatore sensor on/off - regolazione slow/fast - presa per microfono esterno -presa per cuffia - regolazione volume .
Made in China.
- Net weight (2.2 lb = 1 kg)
- 0.450 kg / 0 lb 15.9 oz (0.991 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
