• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1968 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 341271

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2Way Speaker System SW-120A - Akai Electric Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 12.5 x 20.5 x 10.5 inch / 318 x 521 x 267 mm

• Notes

• Akai Closed 2-Way Speaker System Model SW-120A.

  • Rated Impedance 8 Ohms
  • Maximum Handling Power 25 Watts.
  • 50 - 17000Hz
  • Woofer 10", Tweeter 3,5".


  Made in Japan.

• Net weight (2.2 lb = 1 kg)
• 17 lb 6 oz (17.375 lb) / 7.888 kg

• Mentioned in

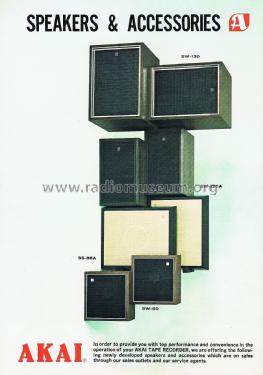

• Akai Speakers & Accessories Brochure

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
