Stereo Tape Deck 4000-DS MK-II
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1976–1979 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 136413

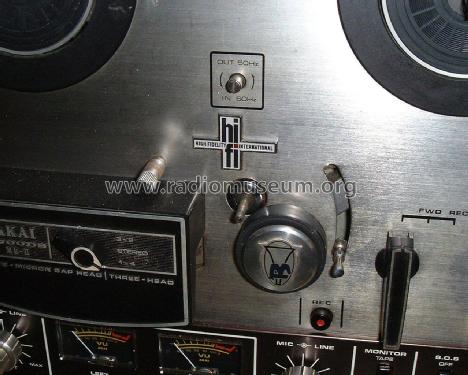

Collection Privée - Patrice Schoser

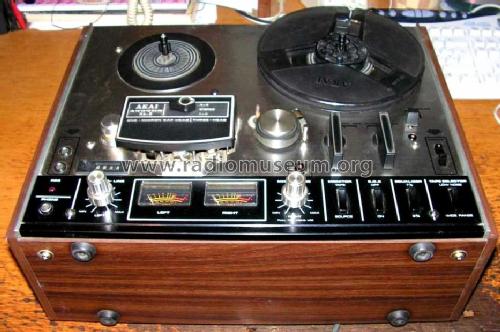

Thanks for Mr. Gömör Géza, Hungary!
Thanks for Mr. Gömör Géza, Hungary!
Thanks for Mr. Gömör Géza, Hungary!

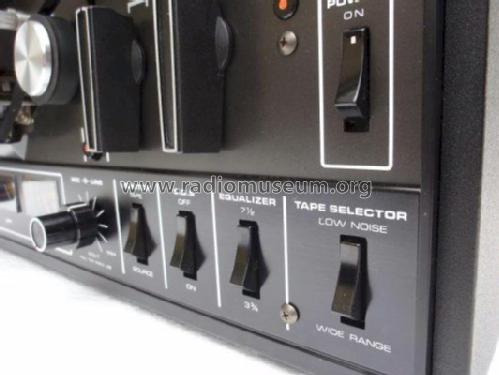

Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197
Ebay hotrodlincoln79 220799393197

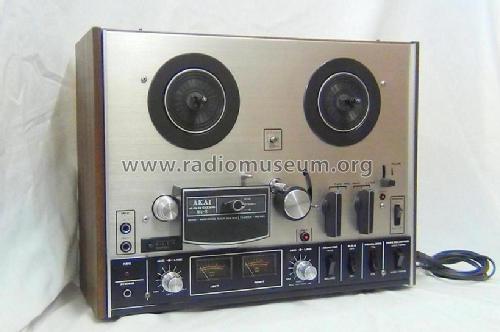

Collection Privée - Patrice Schoser
Collection Privée - Patrice Schoser

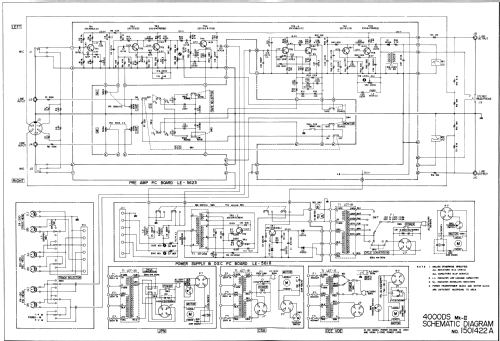

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 17
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 240 ( 50 ou 60 Hz) Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Tape Deck 4000-DS [MK-II] - Akai Electric Co., Ltd.; Tokyo
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 404 x 315 x 180 mm / 15.9 x 12.4 x 7.1 inch
- Notes
-
4 pistes Mono-Stéréo.
Vitesse de défilement de la bande : 9,5 et 19 cm/s.
Une tête d'effacement et deux têtes de lecture.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
