• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1975–1977 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354320

• Number of Transistors
• Semiconductors present.

• Semiconductors
• LA1230 LA3350 µPC30C TA7129 NE545 S-60W S-60W S-60W S-60W

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 160 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

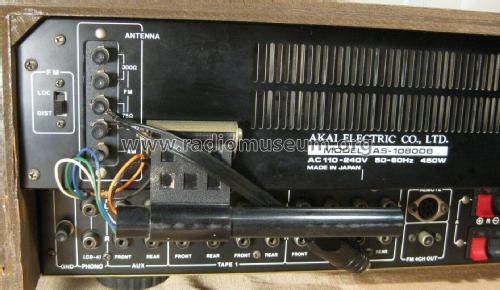

• Model: 4 Channel Receiver AS-1080DB - Akai Electric Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 520 x 182 x 409 mm / 20.5 x 7.2 x 16.1 inch

• Notes

• Quadraphonic receiver, with Dolby B.

• Net weight (2.2 lb = 1 kg)
• 18.3 kg / 40 lb 4.9 oz (40.308 lb)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
