• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1973–1975 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 343168

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 42

• Semiconductors
• LD3120 2SA640 2SC1222 2SC900 2SC959 2SA606 2SD218 2SA649 2SC853 2SA545 2SA641 STV-3 1N34A 10D-1

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 120; 200; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 160 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

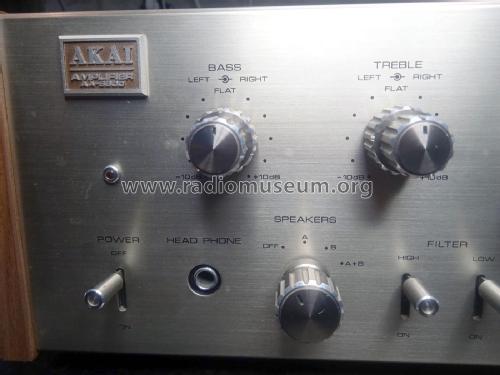

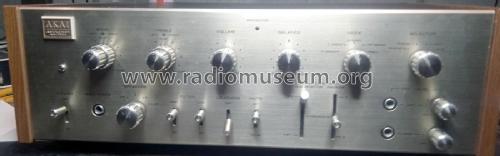

• Model: Amplifier AA-5800 - Akai Electric Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 140 x 300 mm / 16.9 x 5.5 x 11.8 inch

• Notes

• - Output power 2 x 45 W rms @ 8 Ω and 0.1% THD
  - Mic mixing inputs
  - External Preamp Output to Power Input connections

• Net weight (2.2 lb = 1 kg)
• 11.5 kg / 25 lb 5.3 oz (25.33 lb)

• Author
• Model page created by Carlos Saavedra. See "Data change" for further contributors.
