Compact Disc Player CD-32

Akai Electric Co., Ltd.; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Akai Electric Co., Ltd.; Tokyo

Year
1988

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
271541

Schematics

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499099) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499100) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499101) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499102) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499103) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499104) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499105) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499106) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499107) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499108) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499127) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499128) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499129) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499130) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499131) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499132) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499133) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499134) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499135) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499136) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499137) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499138) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499139) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499140) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499141) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499142) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 2499143) R-Player — Akai Electric Co., Compact Disc Player CD-32 (3)

Compact Disc Player CD-32; Akai Electric Co., (ID = 3120437) R-Player — Akai Electric Co., Compact Disc Player CD-32 (1)

Compact Disc Player CD-32; Akai Electric Co., (ID = 3120438) R-Player — Akai Electric Co., Compact Disc Player CD-32 (1)

Compact Disc Player CD-32; Akai Electric Co., (ID = 3120441) R-Player — Akai Electric Co., Compact Disc Player CD-32 (1)

Compact Disc Player CD-32; Akai Electric Co., (ID = 3120439) R-Player — Akai Electric Co., Compact Disc Player CD-32 (1)

Compact Disc Player CD-32; Akai Electric Co., (ID = 3120440) R-Player — Akai Electric Co., Compact Disc Player CD-32 (1)

Compact Disc Player CD-32; Akai Electric Co., (ID = 3120442) R-Player — Akai Electric Co., Compact Disc Player CD-32 (1)

Compact Disc Player CD-32; Akai Electric Co., (ID = 1859498) R-Player — Akai Electric Co., Compact Disc Player CD-32 (2)

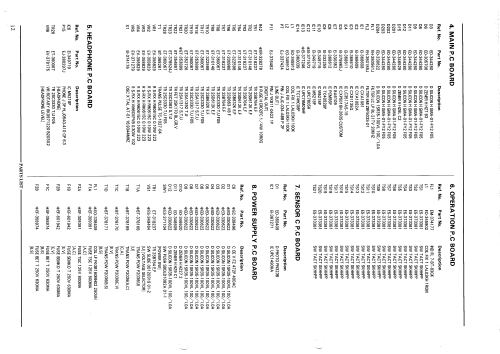

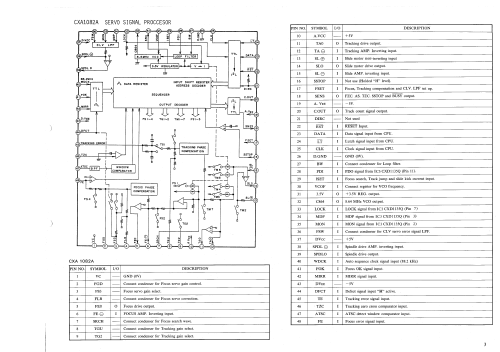

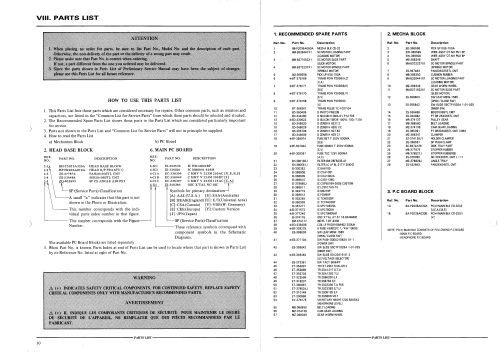

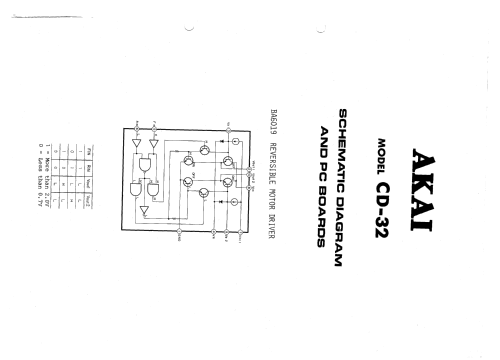

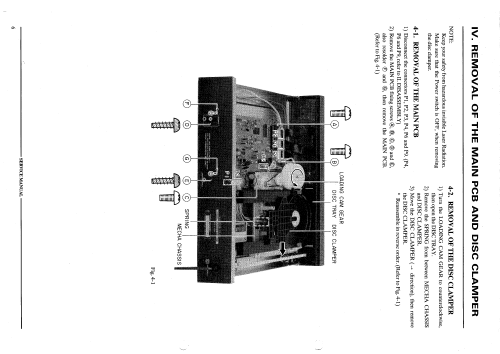

Akai Service Manual

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

Power type and voltage
Alternating Current supply (AC)

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Compact Disc Player CD-32 - Akai Electric Co., Ltd.; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
425 x 98 x 330 mm / 16.7 x 3.9 x 13 inch

Notes
Akai Single Compact Disc Player Model CD-32.
Digital converter: PCM56P, 16 bit, 2 x oversampling
CD Mechanism: KSS-150A
Frequency response: 5Hz to 20kHz, Dynamic range: 90dB, Signal to Noise Ratio: 98dB Total harmonic distortion: 0.005%
Line output: 2V
Digital outputs: coaxial

Power Requirements:
Europe except UK - 220VAC 50Hz
UK & Australia - 240VAC 50Hz
USA & Canada - 120VAC 60Hz
Others - 110-120/220-240VAC 50/60Hz

Net weight (2.2 lb = 1 kg)
4.5 kg / 9 lb 14.6 oz (9.912 lb)

Mentioned in
- - Manufacturers Literature (Service Manual)

Literature/Schematics (1)
AKAI Katalog 1988

Author
Model page created by Franz Scharner. See "Data change" for further contributors.

Other Models
Here you find 616 models, 570 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Akai Electric Co., Ltd.; Tokyo
