• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 218879

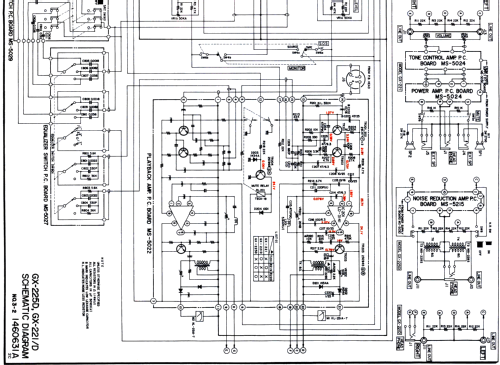

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Custom Deck Solid State GX-221-D - Akai Electric Co., Ltd.; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 425 x 230 mm / 16.9 x 16.7 x 9.1 inch

• Notes

• 4-Spur Stereo, 4,75 cm/Sek., 9,5 cm/Sek. und 19 cm/Sek.,
  max. Spulendurchmesser: 18 cm.

  Ausführliche Serviceunterlagen bei GX-225D

• Net weight (2.2 lb = 1 kg)
• 19 kg / 41 lb 13.6 oz (41.85 lb)

• Price in first year of sale
• 1,774.00 DM

• Source of data
• -- Original prospect or advert
