Stereo Tape Deck GX-620
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1979 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 117803
Gerät eines Sammlerkollegen
Gerät eines Sammlerkollegen
Gerät eines Sammlerkollegen
Gerät eines Sammlerkollegen
Gerät eines Sammlerkollegen

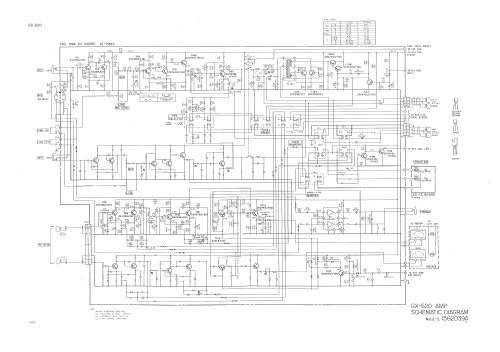

Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Stereo Tape Deck GX-620 - Akai Electric Co., Ltd.; Tokyo
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 440 x 445 x 240 mm / 17.3 x 17.5 x 9.4 inch
- Notes
- Vierspur-Stereo; Bandgeschwindigkeit 9,5/19 cm/sek., drei Motore, drei Tonköpfe, Spulen-Ø 26,5 cm.
- Net weight (2.2 lb = 1 kg)
- 17.5 kg / 38 lb 8.7 oz (38.546 lb)
- Price in first year of sale
- 1,398.00 DM
- Source of data
- - - Data from my own collection
- Mentioned in
- Akai Audio 2/1979, deutsch
- Author
- Model page created by Peter Böhm. See "Data change" for further contributors.
- Other Models
-
Here you find 614 models, 568 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Akai Electric Co., Ltd.; Tokyo
Collections
The model Stereo Tape Deck is part of the collections of the following members.
