Stereo Tape Deck GX-265D
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1976–1978 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 105628
Chassis of the GX-265D tape Deck

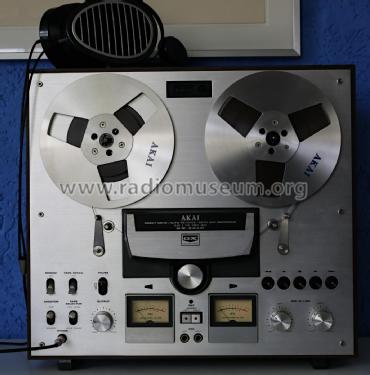

Akai GX265-D with rare cover
Gerät steht in einem Museum.
Akai Katalog 1975
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Tape Deck GX-265D - Akai Electric Co., Ltd.; Tokyo
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 442 x 404 x 195 mm / 17.4 x 15.9 x 7.7 inch
- Notes
- Reel to reel tape recorder, reel diameter 18cm, 3 Motor drive, fully reversal record/play, direct drive servo controlled outer reel Motor, current controlled reel motors, 4-track stereo, 3.75 ips and 7.5 ips, 30 to 22.000 Hz ± 3 dB at 7.5ips, glass and xtal ferrit heads, 6 heads, tape selector, auto off, input mixer, wooden case, alu front.
- Net weight (2.2 lb = 1 kg)
- 16.6 kg / 36 lb 9 oz (36.564 lb)
- Source of data
- -- Collector info (Sammler)
