• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1989/1990

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 151675

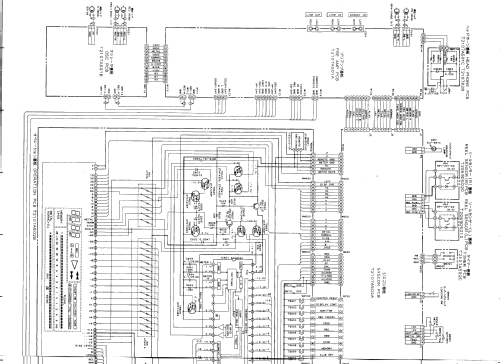

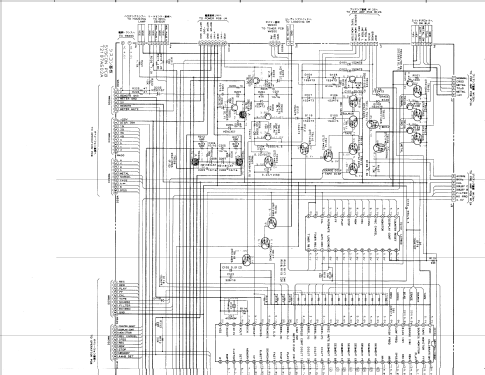

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification; none

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck GX-75 - Akai Electric Co., Ltd.; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 425 x 154 x 350 mm / 16.7 x 6.1 x 13.8 inch

• Notes
• Reference Master, Hinterbandkontrolle,3-Tonkopf-System,GX-Glastonköpfe, Doppel-Kapstanantrieb mit Direkt-Drive-Motor, Kontrolle des Einmessvorgangs mit eingebautem Testgenerator und Fluoreszenz-Anzeige, seperate Kalibrierungs-Möglichkeit für Bandmaterial, Dolby B/C, Dolby HX-PRO, CD-Direkteingang, MPX-Filter, Auto-Tape-Monitor,FLD-Peak-Hold-Schaltung, Auto-Mute IPLS Musiksuchlaufsystem, Fernbedienung, Motorbetriebenes Kassettenfach.

• Net weight (2.2 lb = 1 kg)
• 9.2 kg / 20 lb 4.2 oz (20.264 lb)

• Price in first year of sale
• 990.00 DM

• Author
• Model page created by Helmut Frings. See "Data change" for further contributors.
