Stereo Tape Deck GX-77
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1981–1985 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 128800
Fernbedienung für die GX-77 Bandmaschine
Internal view without case
Akai OP Manual
Akai OP Manual

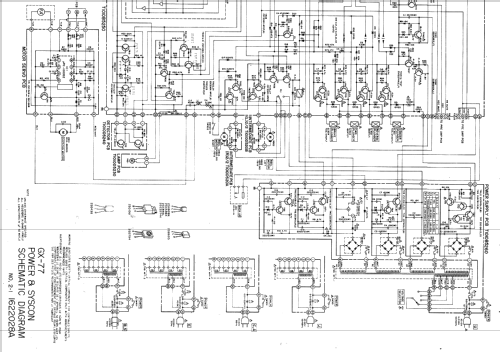

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 115
- Semiconductors
- Main principle
- Audio-Amplification; none
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Tape Deck GX-77 - Akai Electric Co., Ltd.; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 440 x 244 x 227 mm / 17.3 x 9.6 x 8.9 inch
- Notes
- Viertelspurtonbandgerät mit 5 Köpfen, Auto-Reversebetrieb, 3 Motore, Vor- und Hinterbandkontrolle, Vormagnetisierung einstellbar, Reineisenband, digitales Echtzeitzählwerk.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Funkschau (16/1982, S. 39, 40 / Gebrauchstest)
- Author
- Model page created by Mario Spitzer. See "Data change" for further contributors.
- Other Models
-
Here you find 614 models, 568 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Akai Electric Co., Ltd.; Tokyo
Collections
The model Stereo Tape Deck is part of the collections of the following members.
Forum contributions about this model: Akai Electric Co.,: Stereo Tape Deck GX-77
Threads: 1 | Posts: 4
Shall I upload complete Adobe PDF operation's manual and service manual, very high quality, includes schematics?
I am asking because I am not sure if such booklets (original manufacturer's manuals, scanned to create PDF files) are desired in general by radiomuseum.
I have many to contribute so this is an important issue for me.
If ONLY the schematic diagrams are wanted, I can accommodate by sending only those pages from said service manuals.
Thank you.
Alex Johnston, 02.Jun.10
