GXC-75D /CEE /CSA /UL

Akai Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1973–1975
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 251891

 Technical Specifications

  • Number of Transistors
  • 41
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: GXC-75D /CEE /CSA /UL - Akai Electric Co., Ltd.; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 460 x 146 x 302 mm / 18.1 x 5.7 x 11.9 inch
  • Notes

  • Akai Auto Reverse, 3-Head Single Compact Cassette Deck Model GXC-75D.
    3 Models available:
    CEE - 220 V, 50 Hz
    CSA - 120 V, 60 Hz
    UL   - 120 V, 60 Hz
    Dolby NR, 3 Digit Analog Tape Counter
    Power Consumption 25 W.

    Type: auto reverse, 3-head, single compact cassette deck
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.76 cm/s
    Heads: 1 x combination record/playback, 1 x erase
    Motor: hysteresis synchronous outer-rotor
    Tape Type: type I, CrO2
    Noise Reduction: B
    Frequency Response: 30 Hz to 16 kHz  (CrO2 tape)
    Signal to Noise Ratio: 58 dB  (dolby B)
    Wow and Flutter: 0.1%
    Bias frequency: 61 kHz
    Erase ratio: better than 70 dB
    Total Harmonic Distortion: 1%
    Input: 60 mV (line), 0.5 mV (mic)
    Output: 0.775 V (line)

  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Mentioned in

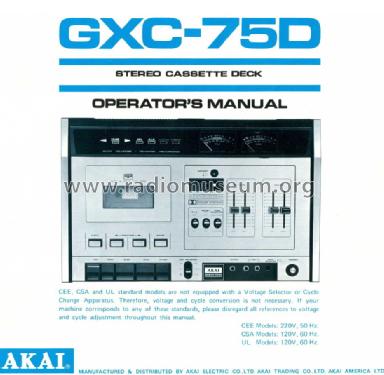

  • - - Manufacturers Literature (Akai Magazine '75)
  • Literature/Schematics (1)
  • Funk-Technik (FT) (21/1973, S. 801 / Messebericht Berlin)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
