Stereo Integrated Amplifier AM-47
Akai Electric Co., Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Akai Electric Co., Ltd.; Tokyo
- Year
- 1993
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 219084
aus Original Prospekt

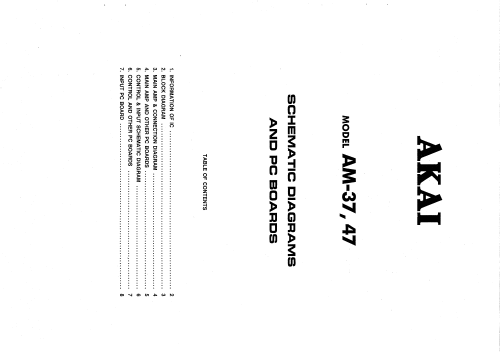

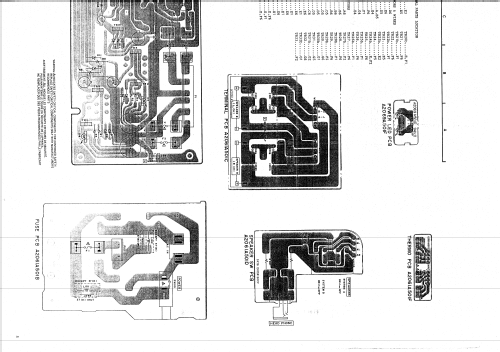

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 260 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Stereo Integrated Amplifier AM-47 - Akai Electric Co., Ltd.; Tokyo
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 425 x 177 x 401 mm / 16.7 x 7 x 15.8 inch
- Notes
- Akai Stereo Integrated Amplifier AM-47,
2 x 130 Watt Sinusleistung (4 Ohm).
- Net weight (2.2 lb = 1 kg)
- 9.7 kg / 21 lb 5.9 oz (21.366 lb)
- Source of data
- -- Original prospect or advert
