Stereo Integrated Amplifier AM-A3

• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1984/1985

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 260911

• Picture

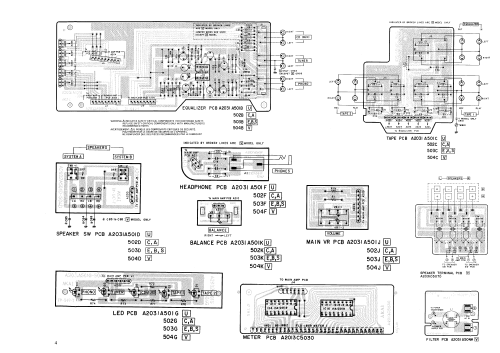

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 120; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Integrated Amplifier AM-A3 - Akai Electric Co., Ltd.; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 44 x 9.5 x 25 inch / 1118 x 241 x 635 mm

• Notes

• Power output: 45 watts per channel into 4Ω.

  Frequency response: 5 Hz to 60 kHz (-3dB).

  Some units can be set on 4 mains voltages. Models for Canada, USA, Europe, UK and Australia are not equipped with this facility.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Abu Bakar. See "Data change" for further contributors.
