FM AM Stereo Tuner AT-K02 (AT-K02S)

Akai Electric Co., Ltd.; Tokyo

Dati
Forum
Immagini
Collezioni

  • Anno
  • 1980
  • Categoria
  • Radio (o sintonizzatore del dopoguerra WW2)
  • Radiomuseum.org ID
  • 145863

 Specifiche tecniche

  • Numero di transistor
  • A semiconduttori.
  • Semiconduttori
  • Principio generale
  • Supereterodina (in generale)
  • Gamme d'onda
  • Onde medie (OM) e MF (FM).
  • Particolarità
  • Hi-Fi equipment
  • Tensioni di funzionamento
  • Alimentazione a corrente alternata (CA) / 120; 110; 220; 240 Volt
  • Altoparlante
  • - Per cuffie o amplificatori esterni
  • Materiali
  • Mobile di metallo
  • Radiomuseum.org
  • Modello: FM AM Stereo Tuner AT-K02 - Akai Electric Co., Ltd.; Tokyo
  • Forma
  • Apparecchio per ripiani a scaffale (come i componibili HiFi).
  • Dimensioni (LxAxP)
  • 440 x 78 x 340 mm / 17.3 x 3.1 x 13.4 inch
  • Annotazioni

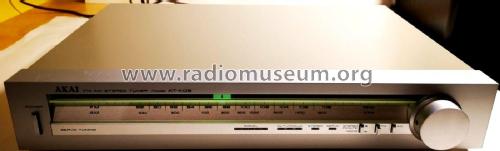

  • A hi-fi AM/FM stereo tuner with an analogue dial housed in a metal case. Servo tuning. With a rotary Tuning control, Signal and Tuning LED meters, LED indicators for Stereo and Servo, switches for Stereo (FM Mute) / Mono, AM and FM. On the back, an adjustable AM ferrite bar antenna, terminals for AM and FM antennae, an FM Distant/Local switch and RCA Line Output sockets.

    Specifications
    FM TUNER SECTION
    Frequency Range 87.5MHz to 108MHz
    Sensitivity (IHF) 1.9µV
    Capture Ratio 1.2dB
    Selectivity (IHF) > 65dB
    Image Rejection > 60dB (98MHz)
    IF Rejection > 85dB (98MHz)
    Spurious Rejection > 85dB (98MHz)
    AM Suppression 60dB
    Signal to Noise Ratio 73dB
    Harmonic Distortion
      MONO
      STEREO    		 < 0.09% (100% modulation)
    < 0.12% (100% modulation)
    Stereo Separation > 52dB (1kHz)
    Sub Carrier Suppression > 60dB
    Output Voltage Fixed 1V (100% modulation)
    Antenna Input Impedance 300Ω balanced, 75Ω unbalanced
    MW TUNER SECTION
    Frequency Range 520kHz to 1,605kHz
    Sensitivity (IHF) 150µV/m (bar antenna)
    10µV (external antenna)
    Selectivity (IHF) > 30dB
    Image Rejection > 55dB (1,000kHz)
    IF Rejection > 40dB
    Signal to Noise Ratio > 55dB
    Output Voltage 300mV (30% modulation)
    Antenna Built-in AM ferrite bar antenna
    External AM antenna

    Semiconductors:   Transistors 24, Diodes 11, LEDs 10, 1Cs 4

    Versions/Power Requirements
    USA and Canada   /  120V AC 60Hz
    Europe except UK /  220V AC 50Hz
    UK and Australia /  240V AC 50Hz
    Other countries  /  110/220/240V 50/60Hz internally switchable

    Similar to the Akai AT-K02L FM AM Stereo Tuner which additionally has LW.
