• Country
• Germany

• Manufacturer / Brand
• Akkord-Radio + Akkord Elektronik (Radios)

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 407

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 2 × 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

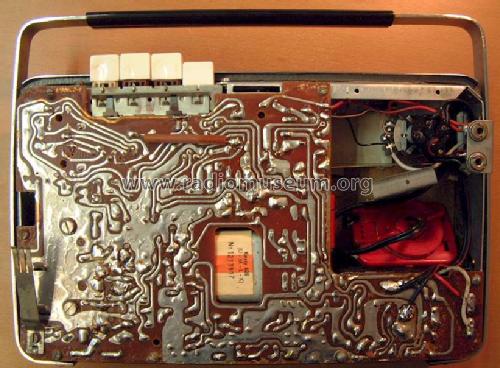

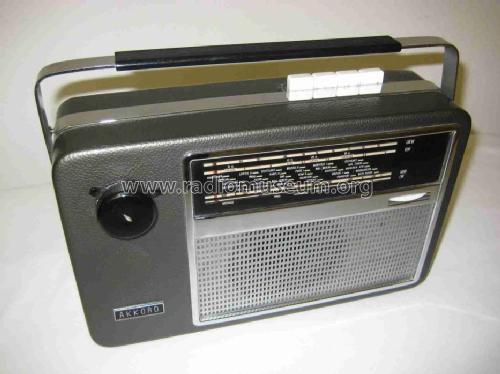

• Model: Kessy 605/4600 - Akkord-Radio + Akkord

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 166 x 77 mm / 10.6 x 6.5 x 3 inch

• Notes
• Transistoren: AF124, AF115, 3× AF116, AC122, 3× OC74.
  Netzbetrieb (220 V) mit Netzteil NT680B (Mehrpreis 50,- DM) möglich.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Price in first year of sale
• 308.00 DM

• Source of data
• Handbuch VDRG 1964/1965 / Radiokatalog Band 1, Ernst Erb
