Pinguette 59

Akkord-Radio + Akkord Elektronik (Radios)

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Akkord-Radio + Akkord Elektronik (Radios)

Year
1959/1960

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
370

Schematics

Pinguette 59; Akkord-Radio + (ID = 91928) Radio — Akkord-Radio + Pinguette 59 (3)

Pinguette 59; Akkord-Radio + (ID = 91930) Radio — Akkord-Radio + Pinguette 59 (3)

Pinguette 59; Akkord-Radio + (ID = 91931) Radio — Akkord-Radio + Pinguette 59 (3)

Pinguette 59; Akkord-Radio + (ID = 91932) Radio — Akkord-Radio + Pinguette 59 (3)

Pinguette 59; Akkord-Radio + (ID = 1746269) Radio — Akkord-Radio + Pinguette 59 (1)
Akkord Pinguette59 1959

Pinguette 59; Akkord-Radio + (ID = 51023) Radio — Akkord-Radio + Pinguette 59 (1)

Pinguette 59; Akkord-Radio + (ID = 11946) Radio — Akkord-Radio + Pinguette 59 (2)
Bild aus ebay

Pinguette 59; Akkord-Radio + (ID = 11947) Radio — Akkord-Radio + Pinguette 59 (2)
Bild aus ebay

Pinguette 59; Akkord-Radio + (ID = 25924) Radio — Akkord-Radio + Pinguette 59 (2)
ebay

Pinguette 59; Akkord-Radio + (ID = 11945) Radio — Akkord-Radio + Pinguette 59 (2)
Bild aus ebay

Pinguette 59; Akkord-Radio + (ID = 225133) Radio — Akkord-Radio + Pinguette 59 (2)
Ebay Nr. 6636149645 bearbeitet

Pinguette 59; Akkord-Radio + (ID = 1298646) Radio — Akkord-Radio + Pinguette 59 (1)

Pinguette 59; Akkord-Radio + (ID = 1520575) Radio — Akkord-Radio + Pinguette 59 (1)

Pinguette 59; Akkord-Radio + (ID = 1520576) Radio — Akkord-Radio + Pinguette 59 (1)
Akkord Pinguette 59, Blick in das Innere

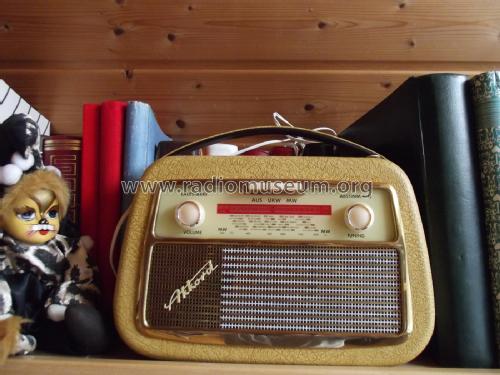

Pinguette 59; Akkord-Radio + (ID = 1778846) Radio — Akkord-Radio + Pinguette 59 (1)

Pinguette 59; Akkord-Radio + (ID = 2425629) Radio — Akkord-Radio + Pinguette 59 (2)
Akkord Prospekt ca.1959

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
DF97 DK96 DF96 DF96 DAF96 DL96

Main principle
Superheterodyne (common); ZF/IF 468/10700 kHz

Tuned circuits
7 AM circuit(s)

Wave bands
Broadcast (BC) and FM or UHF.

Power type and voltage
Line / Batteries (any type) / 110-240 / 2×1,5 & 100 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

Power out
0.2 W (unknown quality)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Pinguette 59 - Akkord-Radio + Akkord

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
320 x 217 x 120 mm / 12.6 x 8.5 x 4.7 inch

Net weight (2.2 lb = 1 kg)
4 kg / 8 lb 13 oz (8.811 lb)

Price in first year of sale
216.00 DM

Source of data
HdB d.Rdf-& Ferns-GrH 1959/60 / Radiokatalog Band 1, Ernst Erb

Other Models
Here you find 201 models, 182 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)

Collections | Museums | Literature

Collections

The model Pinguette is part of the collections of the following members.
