• Country
• Germany

• Manufacturer / Brand
• Akkord-Radio + Akkord Elektronik (Radios)

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 383

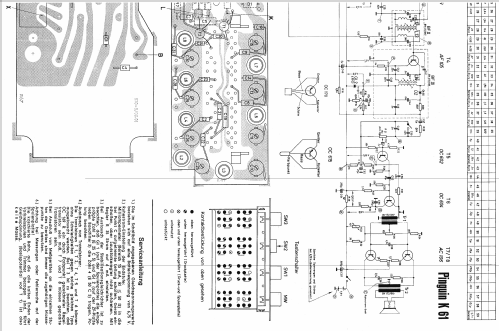

Click on the schematic thumbnail to request the schematic as a free document.

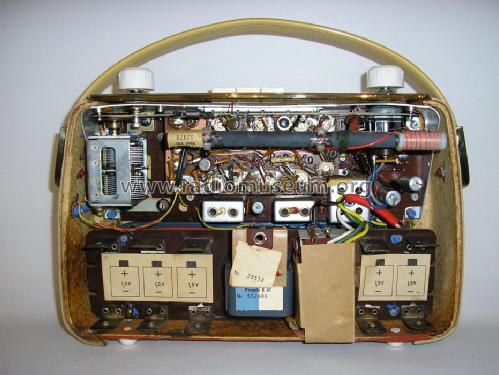

• Number of Transistors
• 8

• Semiconductors
• OC615 OC170 OC169 AF105 OC602 OC604 AC106 AC106 OA70 OA90

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

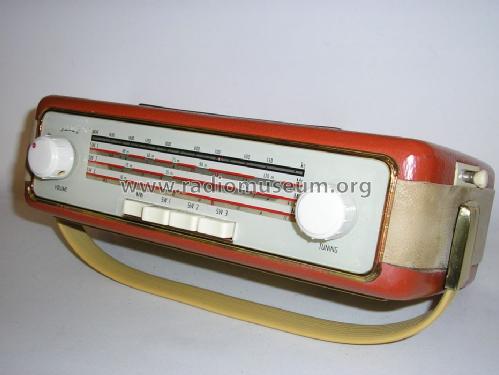

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 5 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

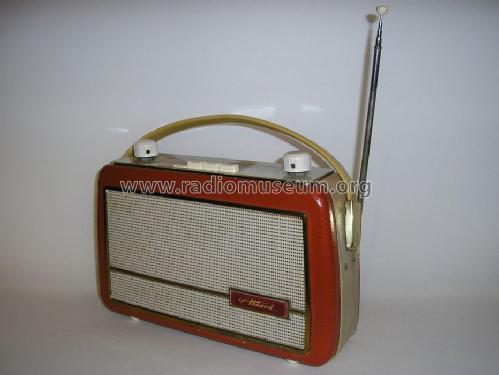

• Model: Pinguin K61 - Akkord-Radio + Akkord

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 165 x 85 mm / 10.8 x 6.5 x 3.3 inch

• Notes
•

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 247.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb

• Other Models

• Here you find 201 models, 182 with images and 140 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Akkord-Radio + Akkord Elektronik (Radios)
