• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Akrad Radio Corporation; Waihi

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 343731

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Clipper Studiogram 5G4 - Akrad Radio Corporation; Waihi

• Shape
• Tablemodel, with any shape - general.

• Notes

• 5-Valve superhet dual wave table radiogram in light or dark oak cabinet.

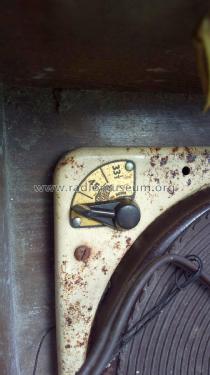

  Garrard RC11 3 speed automatic record changer and 6 x 4 elliptical speaker.

• Price in first year of sale
• 44.50 NZ £

• Mentioned in
• -- Original prospect or advert (22 April 1955 Page 11)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
