Regent Mastertone 1059

Akrad Radio Corporation; Waihi

Data
Forum
Pictures
Collections

  • Year
  • 1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 346258

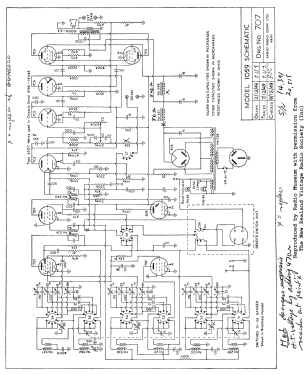

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; 4 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Regent Mastertone 1059 - Akrad Radio Corporation; Waihi
  • Shape
  • Console with any shape - in general
  • Notes

  • 10 valve (including magic eye) 5 band superhet with RF stage console radiogram.

    The 10 valve Regent Mastertone Highboy introduces to you 'Selectatone'- the visual tone control. By separate blending of bass and treble notes, and with a unique tone indicator on the dial, 'Selectatone' brings you personalised tone-tonal perfection.

    Available as an extra, the amazing 'Robot' remote control unit, allowing you to control the set while seated comfortably up to a distance of 25 feet across the room.

    See also Regent 1029 Cavalier lowboy.

  • Mentioned in
  • -- Original prospect or advert (Otago Daily Times 29 July 1949 Page 5)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
