- Country
- United States of America (USA)
- Manufacturer / Brand
- Alamo Electronics Corp. San Antonio, Texas
- Year
- 1950 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 181854
-
- Brand: Radioette

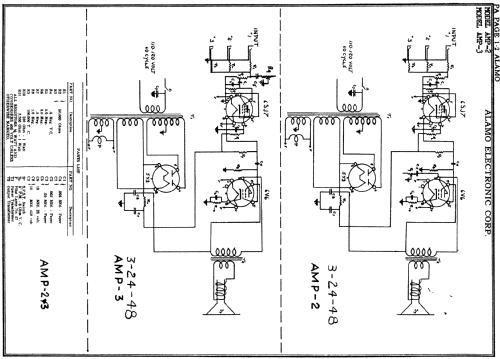

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: AMP3 - Alamo Electronics Corp. San
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 410 x 330 x 200 mm / 16.1 x 13 x 7.9 inch
- Net weight (2.2 lb = 1 kg)
- 5.4 kg / 11 lb 14.3 oz (11.894 lb)
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Author
- Model page created by Hannes Gerber. See "Data change" for further contributors.
