• Country
• United States of America (USA)

• Manufacturer / Brand
• Alaron Inc.; Auburn Hills, MI

• Year
• 1963 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200127

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SA160 2SB98 2SB98 unknown_tr unknown_tr unknown_tr

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 2 inch = 5.1 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

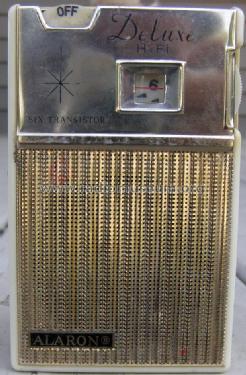

• Model: Deluxe HiFi B-666 - Alaron Inc.; Auburn Hills, MI

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 2.75 x 4.25 x 1.25 inch / 70 x 108 x 32 mm

• Notes

• Made in Japan

• Net weight (2.2 lb = 1 kg)
• 0.5 lb (0 lb 8 oz) / 0.227 kg

• Literature/Schematics (1)
• Photofact TSM Transistor Radio Series SAMS (#31)

• Author
• Model page created by Tom Guest. See "Data change" for further contributors.
