- Country
- Switzerland
- Manufacturer / Brand
- Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11180
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Presumably Dynamic Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 423GS - Albis, Albiswerke AG Siemens
- Dimensions (WHD)
- 555 x 365 x 390 mm / 21.9 x 14.4 x 15.4 inch
- Notes
- Grammo mit Saphir
- Price in first year of sale
- 625.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference

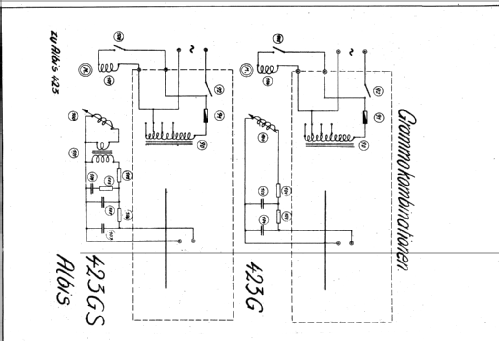

- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
- Picture reference

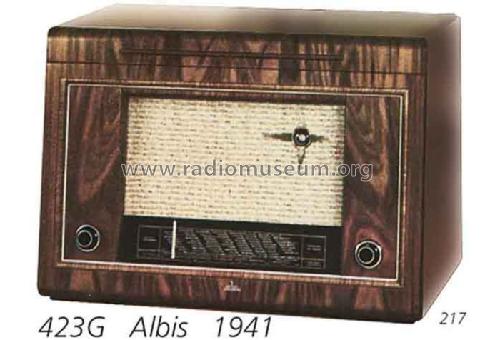

- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
