• Country
• Switzerland

• Manufacturer / Brand
• Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden

• Year
• 1944–1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11212

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 471 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12.8 cm = 5 inch

• Material
• Bakelite case

• from Radiomuseum.org

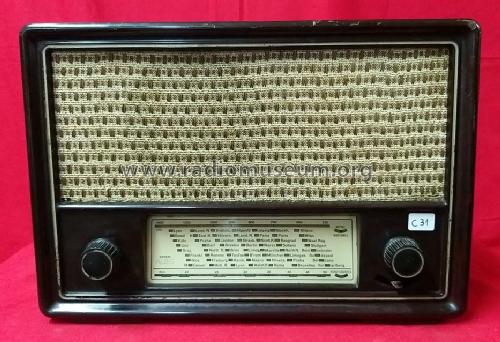

• Model: 451 - Albis, Albiswerke AG Siemens

• Dimensions (WHD)
• 325 x 185 x 229 mm / 12.8 x 7.3 x 9 inch

• Notes
• auch AZ11 oder AZ21

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 307.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
