- Country
- Switzerland
- Manufacturer / Brand
- Albis, Albiswerke AG (Siemens Switzerland AG / Telefunken Zürich AG / Siemens-Albis); Albisrieden
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11262

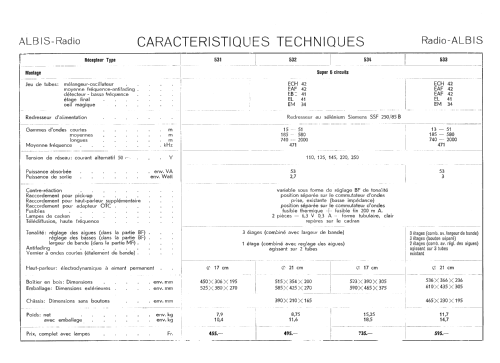

Bild aus dem Albis-Prospekt

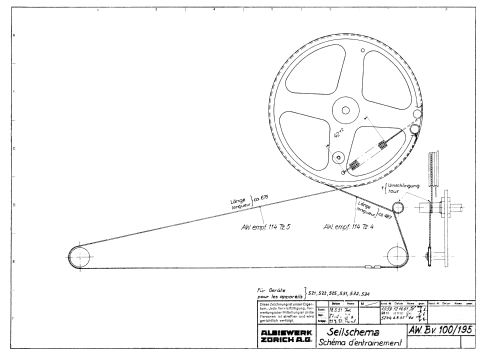

Bild aus dem Albis-Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- Tr.Gl.=Metal-rectif.
- Main principle
- Superheterodyne (common); ZF/IF 471 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 534 - Albis, Albiswerke AG Siemens
- Dimensions (WHD)
- 523 x 390 x 305 mm / 20.6 x 15.4 x 12 inch
- Notes
- Grammo mit Saphir
- Net weight (2.2 lb = 1 kg)
- 12.3 kg / 27 lb 1.5 oz (27.093 lb)
- Price in first year of sale
- 735.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
