• Year
  • 1952
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 200755

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 18
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

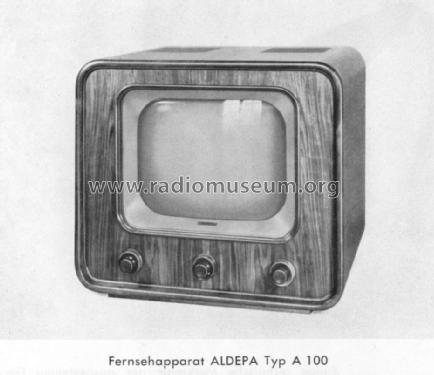

  • Model: Aldepa A-100 - Albis, Albiswerke AG Siemens
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 510 x 440 x 410 mm / 20.1 x 17.3 x 16.1 inch
  • Notes
  • Ausführung nach der CCIR 625-Zeilennorm.
    Empfangskanal 61...68 MHz.
    Für andere Kanäle: Auswechslung von Steckspulen.
    Bildröhre 22 x 29 cm; Gewicht: ca. 24 kg
  • Author
  • Model page created by Walter Haring. See "Data change" for further contributors.
