• Year
  • 1942/1943
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 11191

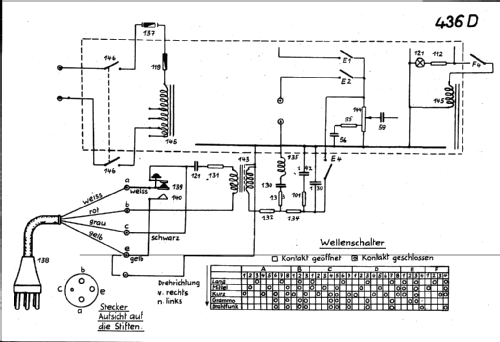

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 471 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Wired Wireless Receiver(AF only)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: mit TR 436 - Albis, Albiswerke AG Siemens
  • Dimensions (WHD)
  • 665 x 260 x 410 mm / 26.2 x 10.2 x 16.1 inch
  • Notes
  • mit TR
  • Price in first year of sale
  • 740.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
