• Country
• Soviet Union

• Manufacturer / Brand
• Aleksandrov Radio Works (ARZ)

• Year
• 1960 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 109366

• • alternative name: Alexandrov

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 35ЛК2Б 6Н14П 6Ф1П 6Ж1П 6Ж1П 6Ж1П 6П9 6Н1П 6П14П 6К4П 6Ж1П 6П9 6Н1П 6П13С 6Ц10П 1Ц11П

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

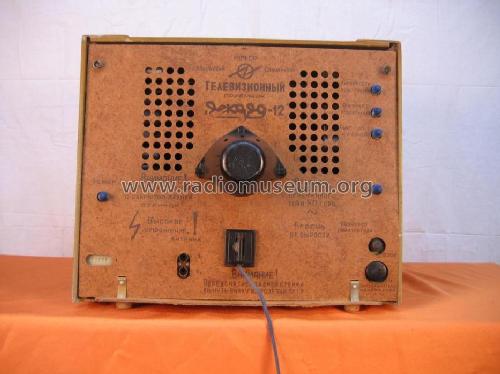

• Model: Rekord {Рекорд} 12 - Aleksandrov Radio Works ARZ

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 485 x 425 x 550 mm / 19.1 x 16.7 x 21.7 inch

• Notes
• 35cm B/W TV with 12 channel OIRT standard VHF tuner.

• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
