Shoroh R-326 {Р-326}

• Country
• Soviet Union

• Manufacturer / Brand
• Aleksandrov Radio Works (ARZ)

• Year
• 1961–1978

• Category
• Military Receiver

• Radiomuseum.org ID
• 71780

• • alternative name: Alexandrov

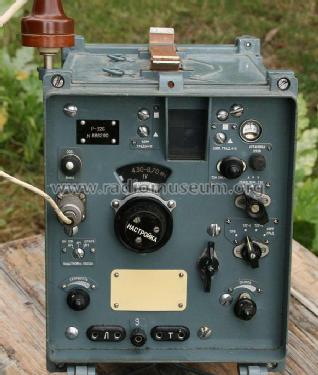

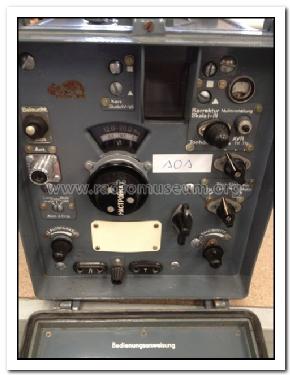

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

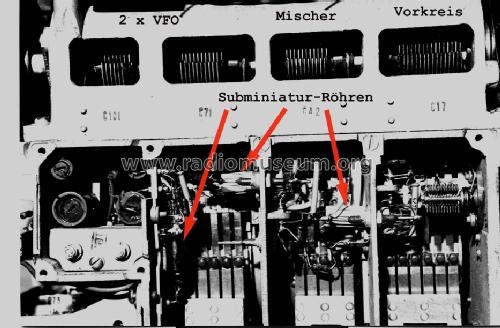

• Number of Tubes
• 19

• Valves / Tubes
• 1Ж29Б-В 1Ж24Б 1Ж37Б

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 2200 kHz; 2 AF stage(s)

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 2.5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Shoroh R-326 {Р-326} - Aleksandrov Radio Works ARZ

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 270 x 370 mm / 8.9 x 10.6 x 14.6 inch

• Notes

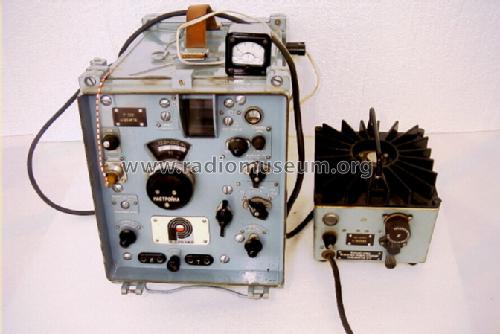

• AM/CW/SSB, coverage 1.0 - 20.0 MHz in six ranges, projection tuning scale, crystal IF filter. Built-in power-transverter for two NiCd batteries KN-14, auxilary power-supply WS-2,5M available. Matches the R-323. Widely used in sovjet armed forces and other Warzaw Treaty armies. Quoted tube types are partly in multiple quantities. 2nd IF: 215 KHz

• Net weight (2.2 lb = 1 kg)
• 14.7 kg / 32 lb 6.1 oz (32.379 lb)
