Cyclope O.C. U
Alfa-Radio, Société Industrielle Alfa (SIA); Bruxelles
- Country
- Belgium
- Manufacturer / Brand
- Alfa-Radio, Société Industrielle Alfa (SIA); Bruxelles
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147669
Catalog page

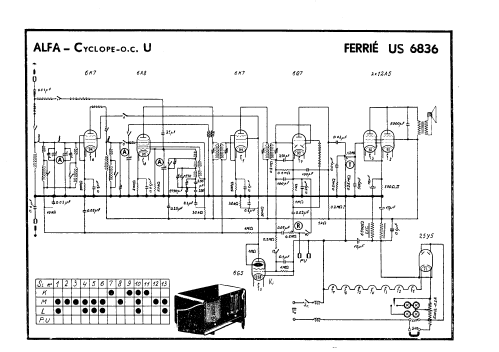

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 123 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cyclope O.C. U - Alfa-Radio, Société
- Shape
- Tablemodel, low profile (big size).
- Notes
-
SW: no RF preamplification, only 6 tuned circuits.
- Price in first year of sale
- 3,750.00 BEF
- Source of data
- -- Original-techn. papers.
- Mentioned in

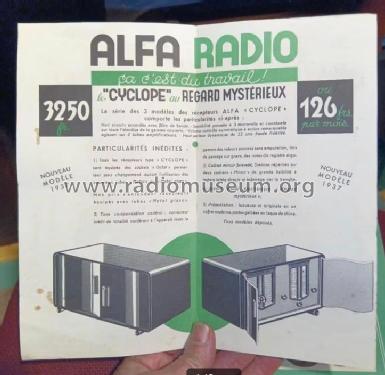

- -- Original prospect or advert
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
