• Country
• Japan

• Manufacturer / Brand
• Alinco Inc.; Osaka

• Year
• 1993

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 183122

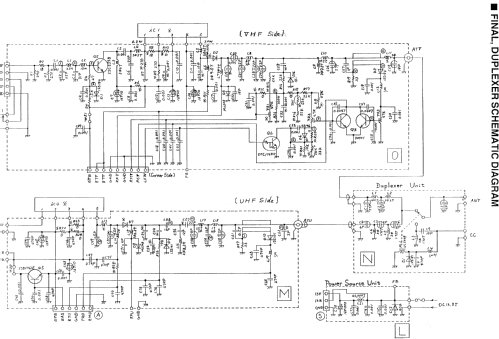

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit. / 13.8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: DR-570E - Alinco Inc.; Osaka

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 150 x 50 x 173 mm / 5.9 x 2 x 6.8 inch

• Notes
• VHF/UHF Twin-Band FM Mobilfunkgerät,
  Bereiche:

  VHF: 144-146 MHz, 45 W; 1.ZF: 10.7 MHz; 2.ZF: 455 kHz;
  UHF: 430-440 MHz, 35 W;
  1.ZF: 30.825 MHz; 2.ZF: 455 kHz;
  Betriebsart: F3E (FM)


• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Price in first year of sale
• 800.00 DM

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heiko Harry Hacker. See "Data change" for further contributors.
