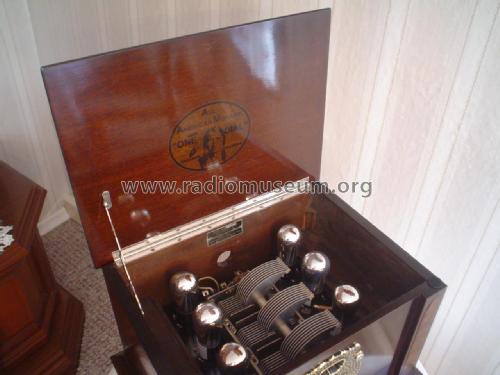

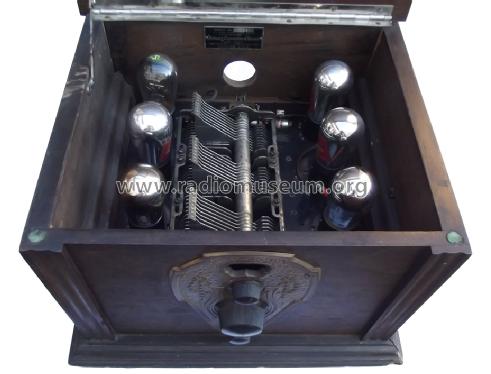

Mohawk Cherokee

• Country
• United States of America (USA)

• Manufacturer / Brand
• All American Mohawk, Rauland Lyric; Chicago, IL

• Year
• 1926/1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 31859

• • alternative name: All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.

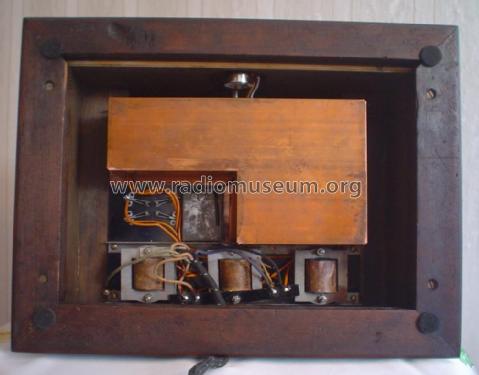

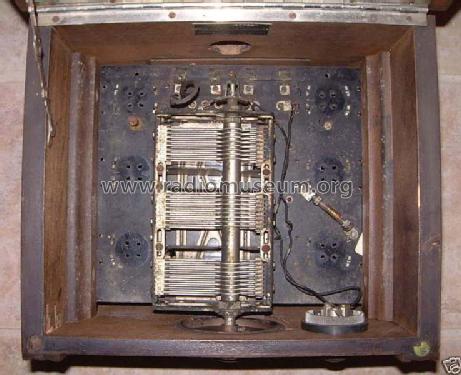

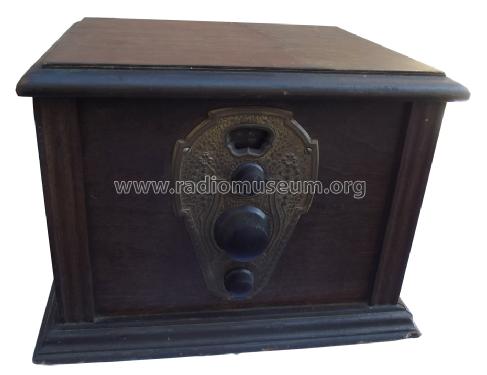

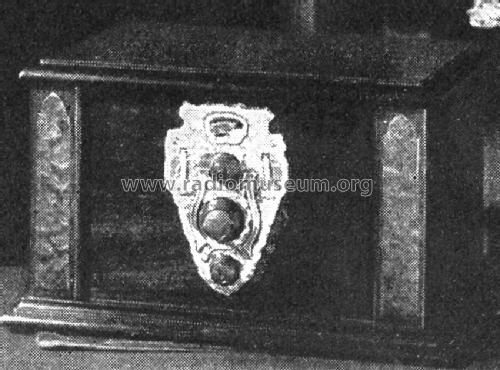

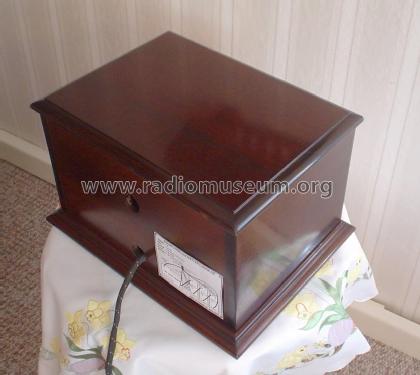

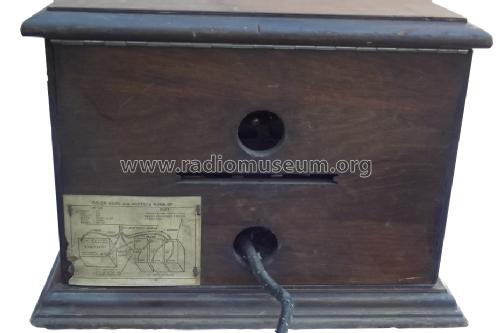

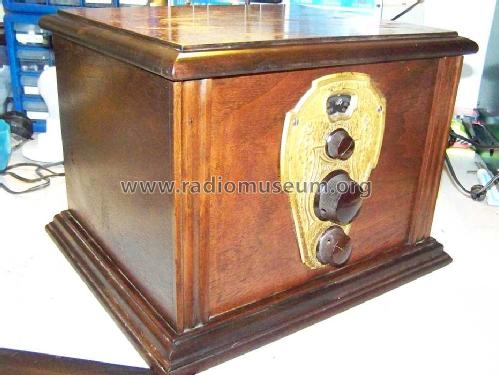

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mohawk Cherokee - All American Mohawk, Rauland

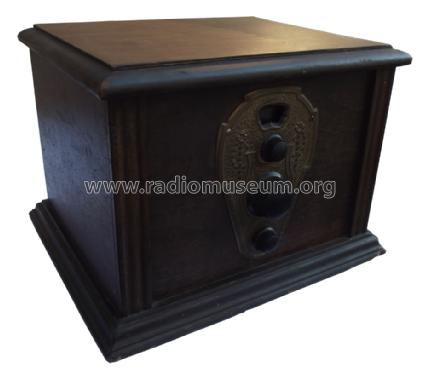

• Shape

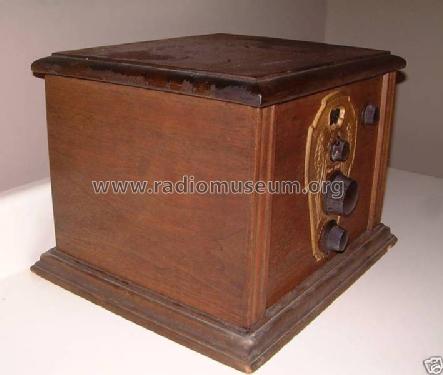

• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 15 x 10 x 12 inch / 381 x 254 x 305 mm

• Notes

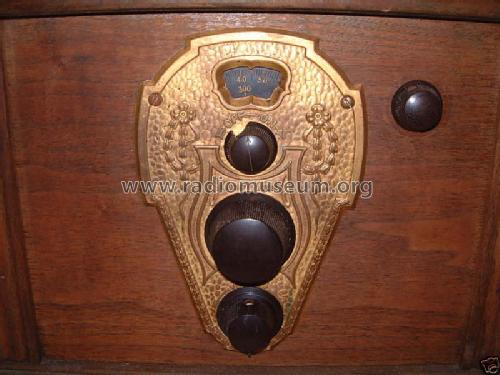

• One-dial tuning

• Price in first year of sale
• 70.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition)

• Literature/Schematics (1)
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (June 1927, page 41)
