Mohawk All-Elec. Kellogg type tubes
All American Mohawk, Rauland Lyric; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- All American Mohawk, Rauland Lyric; Chicago, IL
- Year
- 1927
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 31898
-
- alternative name: All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.

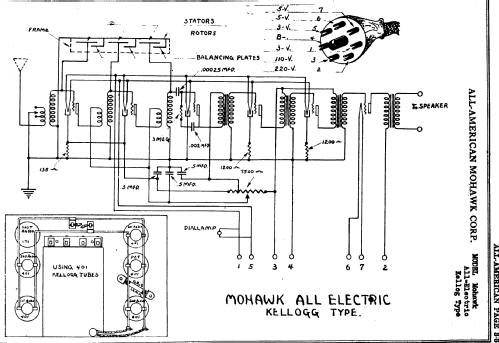

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Valves / Tubes
- 401_McCullough 401_McCullough 401_McCullough 401_McCullough 401_McCullough 171
- Main principle
- TRF without regeneration; 3 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: Mohawk All-Elec. Kellogg type tubes - All American Mohawk, Rauland
- Notes
-
Employs Kellog tubes with AC filament, overhead connected. Requires a 7 contact Power Pack.
Kellogg tube variant of 1927 Mohawk Corp of Illinois "One Dial" radio uses 7 pin jones plug and is identifiable by overhead buss connectors to 401 tube filament supply and has a red manufacturers plate. Mohawk received RCA license Aug 1927 and by Nov 1927 had replaced the Kellogg AC version with the RCA 226 AC version which had a green manufacturers plate and a 12 pin jones plug.
- Circuit diagram reference
- Rider's Perpetual, Volume 3 = 1933 and before
- Other Models
-
Here you find 205 models, 78 with images and 90 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from All American Mohawk, Rauland Lyric; Chicago, IL
