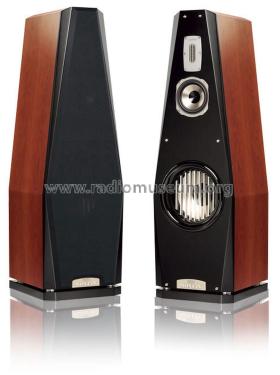

Quadral Aurum Montan VII

All-Akustik, Vertriebs-GmbH & Co. KG; Hannover

Data
Forum
Pictures
Collections

  • Year
  • 2006 ?
  • Category
  • Loudspeaker, headphone or earphone
  • Radiomuseum.org ID
  • 275221
    • Brand: Quadral

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Quadral Aurum Montan VII - All-Akustik, Vertriebs-GmbH &
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 320 x 1050 x 369.5 mm / 12.6 x 41.3 x 14.5 inch
  • Notes

  • Quadral 3-Way Bass Reflex Speaker System Model Aurum Montan VII.
    Nominal/Music Power: 160/250 Watts
    Impedance 4-8 Ohms
    Frequency Response 25 - 65000Hz, 88 dB/1W/1m
    CrossOver: 350Hz, 3000Hz

    Drivers:
    1x 260mm Altima Woofer
    1x 135mm Altima Midrange
    1x Ribbon Tweeter

    Finish:
    Real-Wood veneer:
    Maple Champagne
    Cherry

  • Mentioned in
  • -- Original prospect or advert (Katalog 2006 - Aurum Fascination High End)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
