• Country
• Germany

• Manufacturer / Brand
• All-Akustik, Vertriebs-GmbH & Co. KG; Hannover

• Year
• 1976 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 196558

• • Brand: Quadral

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

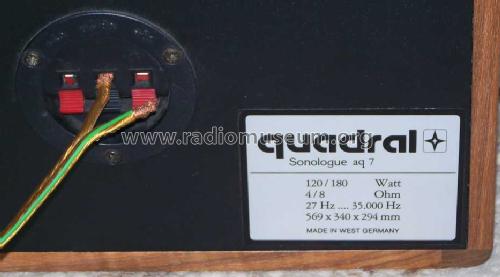

• Model: Quadral Sonologue aq 7 - All-Akustik, Vertriebs-GmbH &

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 340 x 569 x 294 mm / 13.4 x 22.4 x 11.6 inch

• Notes
• 3 Wege Box, Anschlüsse für 4 + 8 Ohm.
  Übertragungsbereich: 27...35.000 Hz
  Belastbarkeit: 120/180 Watt.
  Hochtonkalotte 6 cm, Mitteltöner 11 cm, Bass 23 cm.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felix Kreitlow. See "Data change" for further contributors.
